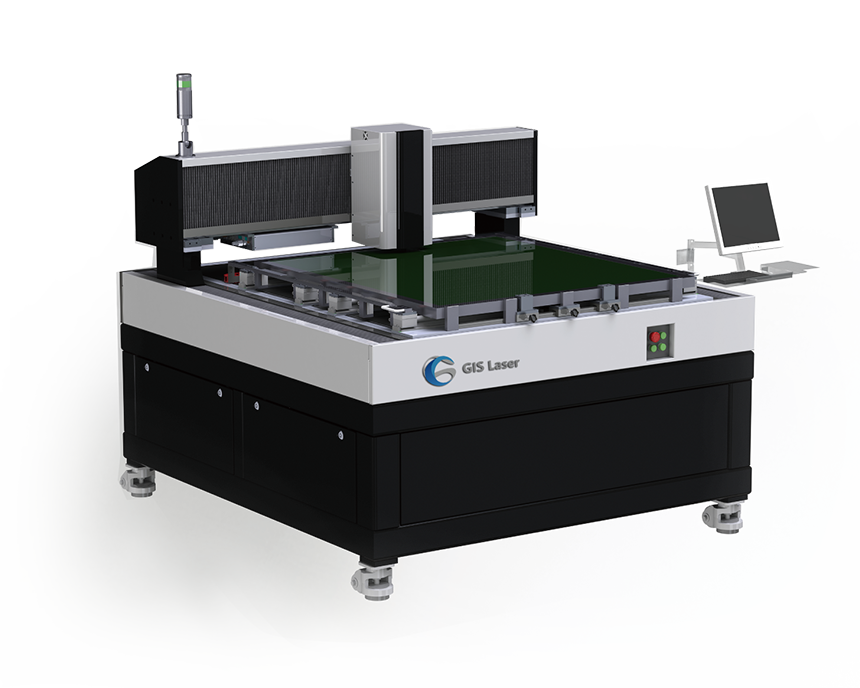

The CTS1010 laser imaging machine has a top screen printing technology which integrating the DMD digital imaging from TI company. Our machine will project precise images onto the screen frame and simplify the pre-press process for screen printing. The screen frame from 400x400mm to 1000x1000mm could be applied in this equipment. The screen frame thickness would be customized. The high quality and reliable image reproduction would be ensured by using DMD DLP technology. The crisp details can be ensured with resolution up to 2540dpi. The higher precision can be ensured with auto focus, adjustable exposure and fine control over raster lines.
|
Specification / Model |
CTS1010 |
|
Max screen size |
1000x1000mm(39.37"x39.37") |
|
Min screen size |
400x400mm/15.8x15.8" |
|
Max exposure size |
900x900mm(35.43"x35.43") |
|
Screen frame thickness |
25-40mm (bespoke service is available) |
|
Imaging System |
DMD DLP Technology |
|
Emulsion thickness (EOM) |
Solvent resistant emulsion 3um-150um, water resistant emulsion 3um-500um |
|
Exposure time |
120-240s/㎡, #350 yellow mesh |
|
Resolution |
1270dpi/2540dpi/12700dip(vector)(optional) |
|
Raster |
Up to 133 line |
|
Focus system |
Automatic focusing |
|
File format |
1 bit Tiff, Gerber, PDF vector etc. |
|
Laser type |
UV laser, wavelength 405+5nm |
|
Laser power |
20W/25W/30W(optional) |
|
Equipment size |
1740x1500x1500mm(68.5"x59.1'x59.1") |
|
Equipment net weight |
1200Kg |
|
Conditions |
Yellow light room with cleanliness Class 10000,temperature 22+2°c, 40-70% relative humidity (no condensation) |
| Power |
Single phase 110V/220V,50/60Hz,4kW, Compressor air 0.5MPa |
*Specifications subject to change without notice
