Computer-to-Screen (CTS) direct exposure machine

GIS Laser CTS Imaging System: Your Trusted Partner for Screen Imaging

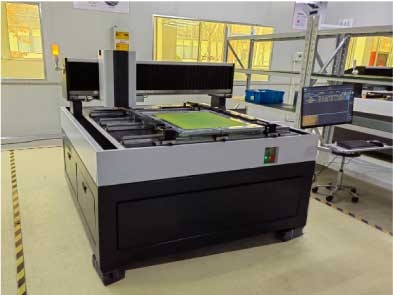

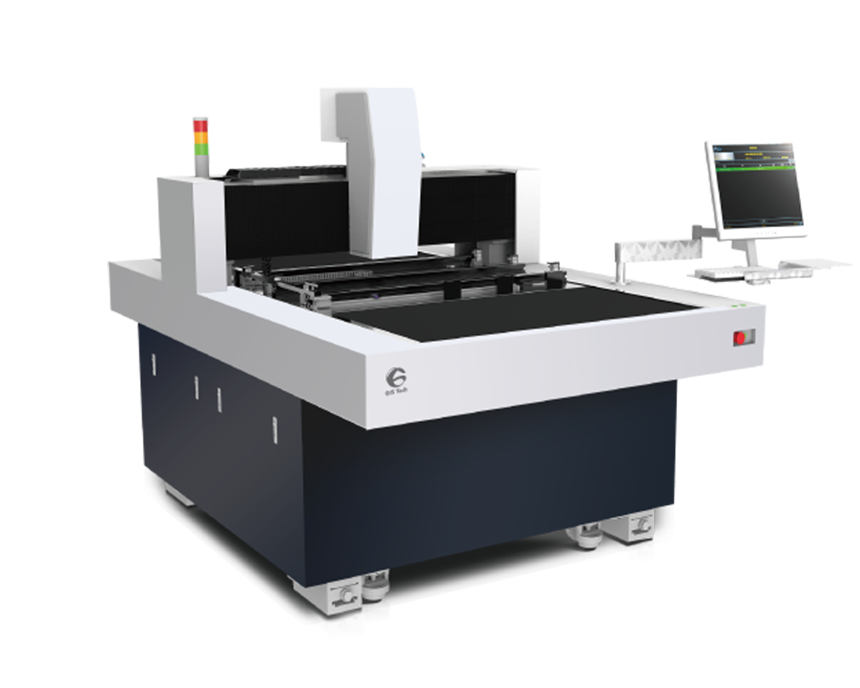

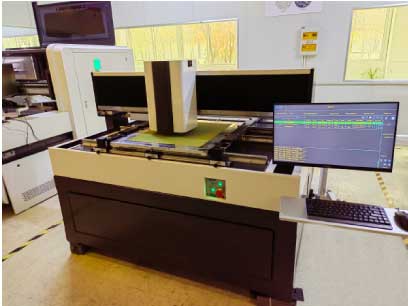

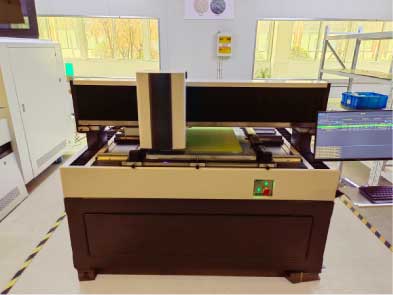

The CTS1112M is a cutting-edge Computer-to-Screen (CTS) direct exposure machine from GIS Laser, utilizing patented technology and DMD digital imaging for precise screen imaging. It supports various screen sizes and thicknesses, delivering high-resolution images for textile printing, decals, packaging, PCB manufacturing, and 3C printing. With a stable motion platform, robust software, and a reliable water cooling system, the CTS1112M is a comprehensive and reliable solution for all screen imaging needs.

Specification / Model
CTS1112M
Max screen size
1080x1200mm(42.52x47.24")
Min screen size
400x400mm/15.8x15.8"
Max exposure size
900x1000mm(35.43x39.37")
Screen frame thickness
25-40mm(bespoke service is available)
Imaging System
DMD DLP Technology
Emulsion thickness (EOM)
Solvent resistant emulsion 3um-150um, water resistant emulsion 3um-500um
Exposure time
120-240s/㎡, #350 yellow mesh
Resolution
1270dpi/2540dpi/12700dip(vector)(optional)
Raster
Up to 133 line
Focus system
Automatic focusing
File format
1 bit Tiff, Gerber, PDF vector etc.
Laser type
UV laser, wavelength 405+5nm
Laser power
20W/25W/30W(optional)
Structure
Marble
Equipment size
2710x1560x1560mm(106.69x61.42x61.42")
Equipment net weight
1660Kg
Conditions
Yellow light room with cleanliness Class 10000,temperature 22+2°c, 40-70% relative humidity (no condensation)
Power Single phase 110V/220V,50/60Hz,4kW, Compressor air 0.5MPa



*Specifications subject to change without notice
