GIS Laser CTS Imaging System: Your Trusted Partner for Screen ImagingKorea, and the EU. This cuting-edge system is tailored to precisely expose and image rayon screens, catering to a wide array of graphics applications. At its core, the CTS1010 directly reads computer data files and converts them into high-resolution images projected onto screens via advanced laser technology.
Ideal for textile printing, decals, packaging, PCB manufacturing, and 3C printing on glass covers, the CTS1010 leverages Texas Instruments' DMD digital imaging technology to produce crisp, sharp direct network point images on silk screens. This ensures a faithful reotherion of digital graphics from your computer, seting the benchmark for screen image creation before silk screen printing.

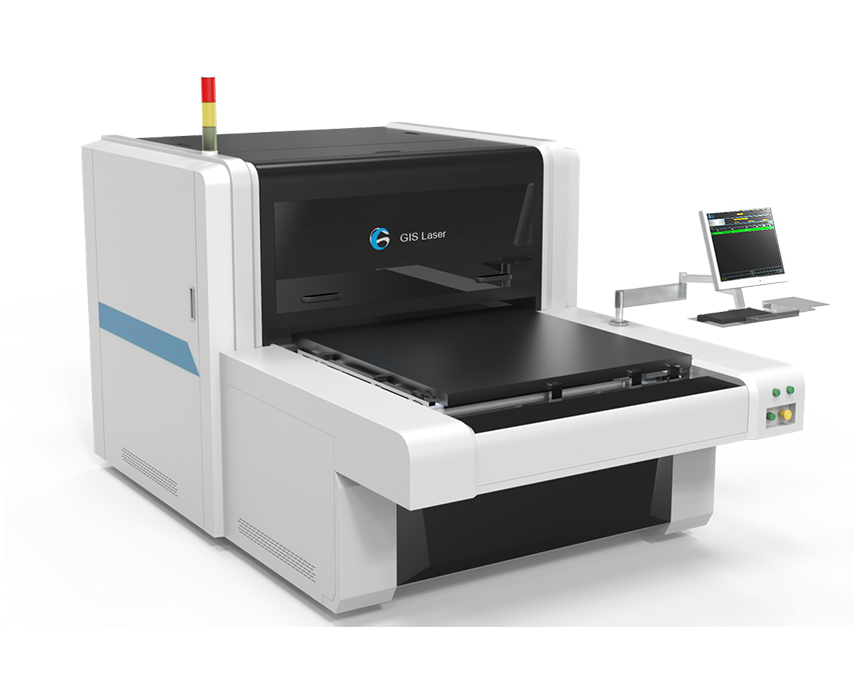

Equipped with a high-precision optical lens, DMD imaging system, 405-nanometer laser, stable motion platiorm, robust sotiware-powered computer, user-friendly monitor, and reliable water cooling system, the CTS1010 ensures precise exposure and imaging on silk screens.
|
Specification / Model |
CTS1010 |
|
Max screen size |
1000x1000mm(39.37"x39.37") |
|
Min screen size |
400x400mm/15.8x15.8" |
|
Max exposure size |
900x900mm(35.43"x35.43") |
|
Screen frame thickness |
25-40mm (bespoke service is available) |
|
Imaging System |
DMD DLP Technology |
|
Emulsion thickness (EOM) |
Solvent resistant emulsion 3um-150um, water resistant emulsion 3um-500um |
|
Exposure time |
120-240s/㎡, #350 yellow mesh |
|
Resolution |
1270dpi/2540dpi/12700dip(vector)(optional) |
|
Raster |
Up to 133 line |
|
Focus system |
Automatic focusing |
|
File format |
1 bit Tiff, Gerber, PDF vector etc. |
|
Laser type |
UV laser, wavelength 405+5nm |
|
Laser power |
20W/25W/30W(optional) |
|
Equipment size |
1740x1500x1500mm(68.5"x59.1'x59.1") |
|
Equipment net weight |
1200Kg |
|
Conditions |
Yellow light room with cleanliness Class 10000,temperature 22+2°c, 40-70% relative humidity (no condensation) |
| Power |
Single phase 110V/220V,50/60Hz,4kW, Compressor air 0.5MPa |
*Specifications subject to change without notice
