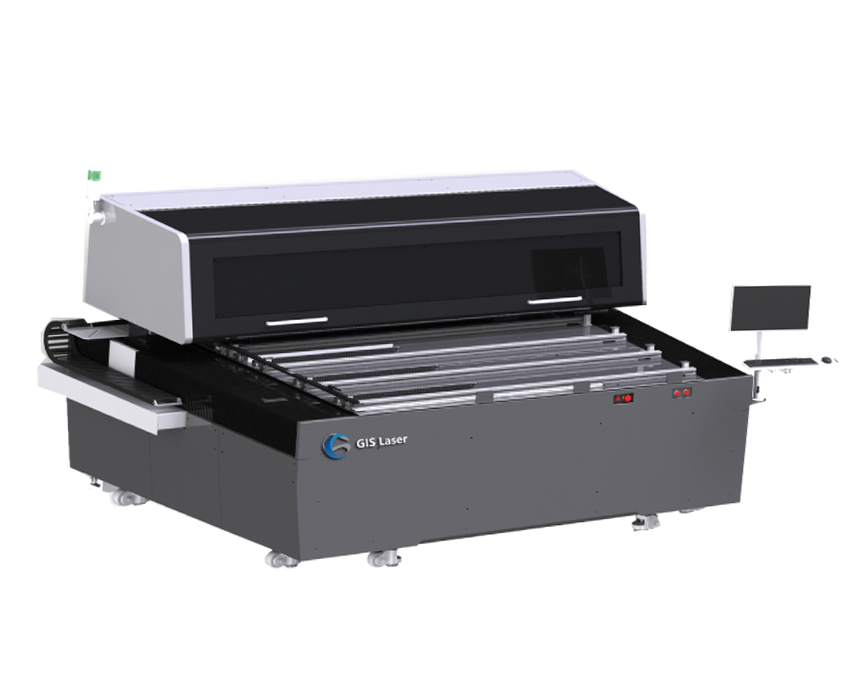

The CTS1520 from GIS Laser is a patented Computer to Screen (CTS) direct exposure machine designed for screen imaging. It utilizes DMD digital imaging technology and a 405nm laser module to create high resolution images on the screen directly. The comprehensive system includes a precision optical lens, stable motion platform and robust software. The accurate and reliable imaging for a wide range of graphics applications can be ensured. The equipment could be applied in textile printing, packaging, PCB manufacturing and 3C printing industry.
|
Specification / Model |
CTS1520 |
|
Max screen size |
1500x2000mm(59.06 x78.74") |
|
Min screen size |
700x700mm(27.56x27.56") |
|
Max exposure size |
1400x1900(55.12x74.8") |
|
Screen frame thickness |
25-50mm (bespoke service is available) |
|
Imaging System |
DMD DLP Technology |
|
Emulsion thickness (EOM) |
Solvent resistant emulsion 3um-150um, water resistant emulsion 3um-500um |
|
Exposure time |
120-240s/ m,#350 yellow mesh |
|
Resolution |
1270/2450dpi/ 12700dip(vector)(optional) |
|
Raster |
Up to 133LPI |
|
Focus system |
Dynamic focusing |
|
File format |
1 bit Tiff, Gerber, PDF vector etc. |
|
Laser type |
UV laser, wavelength 405+5nm |
|
Laser power |
20W/25W/30W(optional) |
|
Equipment size |
3070x2250x1380mm(120.86x88.58x54.33") |
|
Equipment net weight |
3200Kg |
|
Conditions |
Yellow light room with cleanliness Class 10000,temperature 22+2°c, 40-70% relative humidity (no condensation) |
| Power |
Single phase 110V/220V,50/60Hz,4kW, Compressor air 0.5MPa |
*Specifications subject to change without notice
